SAE 对开法兰夹 3000PSI
SAE SPLIT FLANGE CLAMPS 3000 PSI
ISO 6162、SAE J518

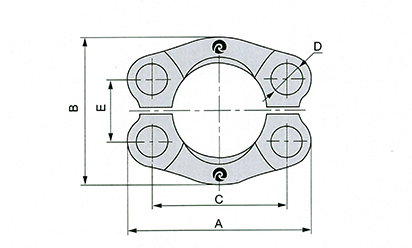

代号 | 法兰型号 | 尺寸 DIMENSIONS | 螺栓 | ||||
PART NO. | FLANGE SIZE | A | B | C | D | E | BOLT |
FL-08 | 1/2“ | 54 | 45.6 | 38.1 | 9 | 17.5 | M8X25 |
FL-12 | 3/4“ | 65 | 51.8 | 47.6 | 11 | 22.2 | M10X30 |
FL-16 | 1” | 70 | 58.4 | 52.4 | 11 | 26.2 | M10X30 |
FL-20 | 1.1/4" | 79.5 | 72.6 | 58.7 | 11 | 30.2 | M10X30 |
FL-24 | 1.1/2" | 93.7 | 82.2 | 69.9 | 13.5 | 35.7 | M12X35 |
FL-32 | 2" | 102 | 96.4 | 77.8 | 13.5 | 42.9 | M12X35 |
