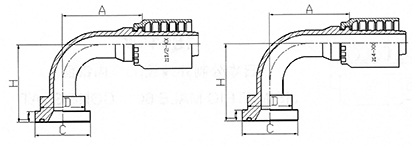

90° SAE 法兰 6000 PSI
90° SAE FLANGE 6000 PSI
| 代号PART NO. | 法兰型号 FLANGE SIZE | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||||||
| 编织 BRAIDED | 缠绕SPIRAL | 公称内径DN | 标号DASH | A | C | D | H | L | |
| 87391Y-08-08 | 87392Y-08-08 | 1/2" | 12 | 08 | 41 | 30.2 | 24 | 47 | 6.73 |
| 87391Y-12-08 | 87392Y-12-08 | 3/4" | 12 | 08 | 41 | 38.1 | 31.7 | 48 | 6.73 |
| 87391Y-12-10 | 87392Y-12-10 | 3/4" | 16 | 10 | 56 | 38.1 | 31.7 | 52.5 | 6.73 |
| 87391Y-12-12 | 87392Y-12-12 | 3/4" | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
| 87391Y-12-16 | 87392Y-12-16 | 3/4" | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
| 87391Y-16-12 | 87392Y-16-12 | 1" | 20 | 12 | 65.5 | 44.4 | 38 | 62 | 8 |
| 87391Y-16-16 | 87392Y-16-16 | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 67.5 | 8 |
| 87391Y-16-20 | 87392Y-16-20 | 1" | 32 | 20 | 91.5/93.6 | 44.4 | 38 | 78.5 | 8 |
| 87391Y-20-16 | 87392Y-20-16 | 1.1/4" | 25 | 16 | 76.7 | 50.8 | 43 | 67.5 | 8 |
| 87391Y-20-20 | 87392Y-20-20 | 1.1/4" | 32 | 20 | 91.5/93.6 | 50.8 | 43 | 78.5 | 8 |
| 87391Y-20-24 | 87392Y-20-24 | 1.1/4" | 40 | 24 | 107/110 | 50.8 | 43 | 78.5 | 8 |
| 87391Y-24-20 | 87392Y-24-20 | 1.1/2" | 32 | 20 | 91.5/93.6 | 60.3 | 50 | 80.5 | 8 |
| 87391Y-24-24 | 87392Y-24-24 | 1.1/2" | 40 | 24 | 109.4/112.4 | 60.3 | 50 | 94 | 8 |
| 87391Y-32-24 | 87392Y-32-24 | 2" | 40 | 24 | 109.4/112.4 | 71.4 | 62 | 94 | 9.53 |
| 87391Y-32-32 | 87392Y-32-32 | 2" | 50 | 32 | 131.8/135.2 | 71.4 | 62 | 114.3 | 9.53 |
| 87391Y-40-32 | 87392Y-40-32 | 2.1/2" | 50 | 32 | 131.8/135.2 | 84.1 | 74 | 116.3 | 9.53 |
