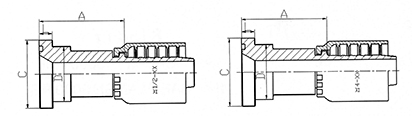

SAE 法兰 3000 PSI
SAE FLANGE 3000 PSI
代号PART NO. | 法兰型号 FLANGE SIZE | 胶管 HOSE BORE |
|
尺寸 DIMENSIONS | |||||
编织 BRAIDED | 缠绕SPIRAL | 公称内径DN | 标号DASH | A | C | D | L | ||
87311Y-08-08 | 87312Y-08-08 | 1/2" | 12 | 08 |
|
46 | 30.2 | 24 | 6.73 |
87311Y-12-08 | 87312Y-12-08 | 3/4" | 12 | 08 |
|
47 | 38.1 | 31.7 | 6.73 |
87311Y-12-10 | 87312Y-12-10 | 3/4" | 16 | 10 |
|
47.5 | 38.1 | 31.7 | 6.73 |
87311Y-12-12 | 87312Y-12-12 | 3/4" | 20 | 12 |
|
48 | 38.1 | 31.7 | 6.73 |
87311Y-12-16 | 87312Y-12-16 | 3/4" | 25 | 16 |
|
49 | 38.1 | 31.7 | 6.73 |
87311Y-16-12 | 87312Y-16-12 | 1" | 20 | 12 |
|
51 | 44.4 | 38 | 8 |
87311Y-16-16 | 87312Y-16-16 | 1" | 25 | 16 |
|
52 | 44.4 | 38 | 8 |
87311Y-16-20 | 87312Y-16-20 | 1" | 32 | 20 |
|
53/55.1 | 44.4 | 38 | 8 |
87311Y-20-16 | 87312Y-20-16 | 1.1/4" | 25 | 16 |
|
57 | 50.8 | 43 | 8 |
87311Y-20-20 | 87312Y-20-20 | 1.1/4" | 32 | 20 |
|
58/60.1 | 50.8 | 43 | 8 |
87311Y-24-20 | 87312Y-24-20 | 1.1/2" | 32 | 20 |
|
68/70.1 | 60.3 | 50 | 8 |
87311Y-24-24 | 87312Y-24-24 | 1.1/2" | 40 | 24 |
|
68/71 | 60.3 | 50 | 8 |
87311Y-32-24 | 87312Y-32-24 | 2" | 40 | 24 |
|
70/73 | 71.4 | 62 | 9.53 |
87311Y-32-32 | 87312Y-32-32 | 2" | 50 | 32 |
|
70/73.4 | 71.4 | 62 | 9.53 |
