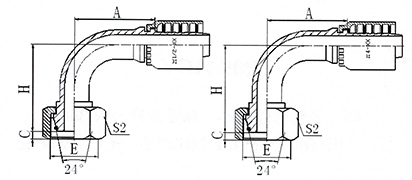

90°公制内螺纹24°锥带〇形圈重系列
90° METRIC FEMALE 24° CONE 0-RING H.T. ISO 12151-2、DIN3865
| 代号PART NO. | 螺纹E | 胶管HO; | SE BORE | 管子外径 | O形圈 | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕SPIRAL | THREAD E | 公称内径 DN | 标号 DASH | TUBEO.D. | ORING | A | C | H | S2 |
| 20591Y-14-04W | - | M16X1.5 | 6 | 04 | 6 | O04.5X1.5 | 30 | 1.1 | 30.5 | 17 |
| 20591Y-16-04T | - | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 30 | 1.5 | 31 | 19 |
| 20591Y-16-05W | - | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 30 | 1.5 | 31 | 19 |
| 20591Y-18-05T | - | M18X1.5 | 8 | 05 | 10 | O08.0X1.5 | 33 | 1.5 | 33.5 | 22 |
| 20591Y-18-06T | 20592Y-18-06T | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 37 | 1.5 | 35 | 22 |
| 20591Y-20-06T | 20592Y-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 34.5 | 2.5 | 35.5 | 24 |
| 20591Y-20-08W | 20592Y-20-08W | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 37.5 | 2.5 | 36.5 | 24 |
| 20591Y-22-06T | 20592Y_22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 34.5 | 2.5 | 36 | 27 |
| 20591Y-22-08T | 20592Y-22-08T | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 42 | 2.5 | 42.5 | 27 |
| 20591Y-24-08T | 20592Y-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 39.5 | 3 | 43 | 30 |
| 20591Y-24-10W | 20592Y-24-10W | M24X1.5 | 16 | 10 | 16 | O13.0X2.0 | 45 | 3 | 45.5 | 30 |
| 20591Y-30-10T | 20592Y-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 49 | 2.5 | 49.5 | 36 |
| 20591Y-30-12T | 20592Y-30-12T | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 55.8 | 2.5 | 54.5 | 36 |
| 20591Y-36-12T | 20592Y-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 56 | 3 | 59 | 46 |
| 20591Y-42-16T | 20592Y-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 71 | 4 | 70 | 50 |
| 20591Y-52-20T | 20592Y-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 83/85.1 | 4.5 | 86.5 | 60 |
| 20591Y-52-24T | 20592Y-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 109.4/112.4 | 4.5 | 100 | 60 |
