20441Y

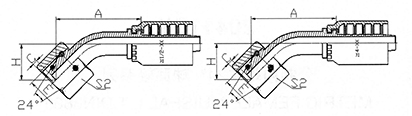

45°公制内螺纹24°锥带〇形圈轻系列

45° METRIC FEMALE 24° CONE 0-RING L.T. ISO 12151-2—DIN3865


产品详情

代号PART NO. 螺纹E THREAD E 胶管 HOSE BORE 管子外径 TUBE O.D. 〇形圈 ORING 尺寸 DIMENSIONS
编织 BRAIDED 缠绕SPIRAL 公称内径 DN 标号 DASH A C H S2
20441Y-14-04W - M14X1.5 6 04 8 O06.5X1.5 38.1 1.6 16 17
20441 Y-16-04T - M16X1.5 6 04 10 O08.0X1.5 38.1 2 16 19
20441Y-16-05W - M16X1.5 8 05 10 O08.0X1.5 40.3 2 17 19
20441Y-16-06W 20442Y-16-06W M16X1.5 10 06 10 O08.0X1.5 40.3 2 17 19
20441Y-18-05T - M18X1.5 8 05 12 O10.0X1.5 40.3 1.5 17 22
20441Y-18-06T 20442Y-18-06T M18X1.5 10 06 12 O10.0X1.5 45 1.5 18.5 22
20441Y-22-05T - M22X1.5 8 05 15 O12.0X2.0 40.9 3 18 27
20441Y-22-06T 20442Y-22-06T M22X1.5 10 06 15 O12.0X2.0 42 3 18 27
20441Y-22-08T 20442Y- 22-08T M22X1.5 12 08 15 O12.0X2.0 48.8 3 20 27
20441Y-26-08T 20442Y-26-08T M26X1.5 12 08 18 O15.0X2.0 47.3 2 21 32
20441Y-26-10T 20442Y-26-10T M26X1.5 16 10 18 O15.0X2.0 58 2 23.5 32
20441Y-26-12W 20442Y-26-12W M26X1.5 20 12 18 O15.0X2.0 61.4 2 24.6 32
20441Y-30-10T 20442Y-30-10T M30X2 16 10 22 O20.0X2.0 56.4 4 24.1 36
20441Y-30-12T 20442Y-30-12T M30X2 20 12 22 O20.0X2.0 63.2 4 25.6 36
20441Y-36-12T 20442Y-36-12T M36X2 20 12 28 O26.0X2.0 61.5 4.5 25.6 41
20441Y-45-20T 20442Y-45-20T M45X2 32 20 35 O32.0X2.5 88.7/90.8 4 39.1 50
20441Y-52-20T 20442Y-52-20T M52X2 32 20 42 O38.0X2.5 90.3/92.4 4 39.8 60
20441Y-52-24T 20442Y-52-24T M52X2 40 24 42 O38.0X2.5 114.5/117.5 4 43.7 60
