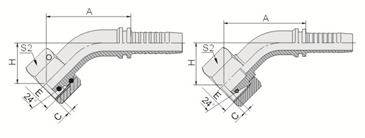

45°公制内螺纹24°锥带O形圈轻系列
45°METRIC FEMALE 24° CONE O-RING L.T.
ISO 12151-2、DIN 3865
| 代号 | 螺纹 E | 软管 HOSE BORE | 管子外径 | O形圈 | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | TUBE O.D. | O-RING | A | C | H | S2 |
| 20441-14-04T | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 42.5 | 1.6 | 19.6 | 17 |
| 20441-16-04T | M16X1.5 | 6 | 04 | 10 | O08.0X1.5 | 38.1 | 2.3 | 16 | 19 |
| 20441-16-05T | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 41.1 | 2.3 | 17 | 19 |
| 20441-16-06W | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 48.2 | 1.5 | 23.9 | 19 |
| 20441-18-05T | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 40.3 | 1.5 | 17 | 22 |
| 20441-18-06T | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 44.1 | 1.5 | 18.4 | 22 |
| 20441-18-08W | M18X1.5 | 12 | 08 | 12 | O10.0X1.5 | 60.7 | 2 | 25.8 | 22 |
| 20441-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 42 | 3 | 18 | 27 |
| 20441-22-08T | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 61 | 3 | 25 | 27 |
| 20441-26-10T | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 70.5 | 2.1 | 27.4 | 32 |
| 20441-26-12W | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 79.3 | 2.5 | 30.8 | 32 |
| 20441-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 71.5 | 3.8 | 28.5 | 36 |
| 20441-30-12T | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 78 | 3.8 | 29.5 | 36 |
| 20441-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 79.5 | 3.5 | 32.1 | 41 |
| 20441-36-16T | M36X2 | 25 | 16 | 28 | O26.0X2.0 | 85.6 | 4.5 | 32.5 | 41 |
| 20441-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.5 | 90.5 | 4 | 35 | 50 |
| 20441-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.5 | 99.8 | 4 | 39.1 | 50 |
| 20441-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.5 | 102 | 4 | 39.8 | 60 |
| 20441-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.5 | 119.5 | 4 | 43.7 | 60 |
