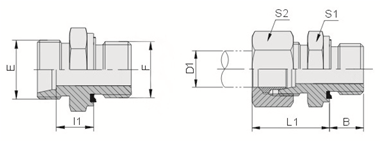

| 代号 | 螺纹 THREAD | 管子外径 D1 | 胶垫 | 尺寸 DIMENSIONS | |||||
| PART NO. | E | F | TUBE O.D. | SEAL | B | l1 | L1 | S1 | S2 |
| 1CB-12-02WD | M12X1.5 | G1/8“X28 | 6 | WD-B02 | 8 | 9.5 | 24.5 | 14 | 14 |
| 1CB-12-04WD | M12X1.5 | G1/4”X19 | 6 | WD-B04 | 12 | 11 | 26 | 19 | 14 |
| 1CB-14-04WD | M14X1.5 | G1/4“X19 | 8 | WD-B04 | 12 | 11 | 26 | 19 | 17 |
| 1CB-14-06WD | M14X1.5 | G3/8”X19 | 8 | WD-B06 | 12 | 11.5 | 26.5 | 22 | 17 |
| 1CB-16-04WD | M16X1.5 | G1/4“X19 | 10 | WD-B04 | 12 | 12 | 27 | 19 | 19 |
| 1CB-16-06WD | M16X1.5 | G3/8”X19 | 10 | WD-B06 | 12 | 12.5 | 27.5 | 22 | 19 |
| 1CB-16-08WD | M16X1.5 | G1/2“X14 | 10 | WD-B08 | 14 | 14 | 29 | 27 | 19 |
| 1CB-18-04WD | M18X1.5 | G1/4”X19 | 12 | WD-B04 | 12 | 12 | 27 | 19 | 22 |
| 1CB-18-06WD | M18X1.5 | G3/8“X19 | 12 | WD-B06 | 12 | 12.5 | 27.5 | 22 | 22 |
| 1CB-18-08WD | M18X1.5 | G1/2“X14 | 12 | WD-B08 | 14 | 14 | 29 | 27 | 22 |
| 1CB-22-06WD | M22X1.5 | G3/8”X19 | 15 | WD-B06 | 12 | 13.5 | 28.5 | 24 | 27 |
| 1CB-22-08WD | M22X1.5 | G1/2“X14 | 15 | WD-B08 | 14 | 15 | 30 | 27 | 27 |
| 1CB-26-08WD | M26X1.5 | G1/2“X14 | 18 | WD-B08 | 14 | 14.5 | 31 | 27 | 32 |
| 1CB-26-12WD | M26X1.5 | G3/4“X14 | 18 | WD-B12 | 16 | 14.5 | 31 | 32 | 32 |
| 1CB-30-12WD | M30X2 | G3/4“X14 | 22 | WD-B12 | 16 | 16.5 | 33 | 32 | 36 |
| 1CB-36-16WD | M36X2 | G1”X11 | 28 | WD-B16 | 18 | 17.5 | 34 | 41 | 41 |
| 1CB-45-20WD | M45X2 | G1.1/4"X11 | 35 | WD-B20 | 20 | 18.5 | 40 | 50 | 50 |
| 1CB-52-24WD | M52X2 | G1.1/2"X11 | 42 | WD-B24 | 22 | 19 | 42 | 55 | 60 |
| 1DB-14-04WD | M14X1.5 | G1/4"X19 | 6 | WD-B04 | 12 | 15 | 30 | 19 | 17 |
| 1DB-16-04WD | M16X1.5 | G1/4"X19 | 8 | WD-B04 | 12 | 15 | 30 | 19 | 19 |
| 1DB-16-06WD | M16X1.5 | G3/8"X19 | 8 | WD-B06 | 12 | 17.5 | 32.5 | 22 | 19 |
| 1DB-18-04WD | M18X1.5 | G1/4"X19 | 10 | WD-B04 | 12 | 14.5 | 31 | 19 | 22 |
| 1DB-18-06WD | M18X1.5 | G3/8"X19 | 10 | WD-B06 | 12 | 17 | 33.5 | 22 | 22 |
| 1DB-20-06WD | M20X1.5 | G3/8"X19 | 12 | WD-B06 | 12 | 17 | 33.5 | 22 | 24 |
| 1DB-20-08WD | M20X1.5 | G1/2"X14 | 12 | WD-B08 | 14 | 17.5 | 34 | 27 | 24 |
| 1DB-22-08WD | M22X1.5 | G1/2"X14 | 14 | WD-B08 | 14 | 19 | 36.5 | 27 | 27 |
| 1DB-24-06WD | M24X1.5 | G3/8"X19 | 16 | WD-B06 | 12 | 18 | 36.5 | 27 | 30 |
| 1DB-24-08WD | M24X1.5 | G1/2"X14 | 16 | WD-B08 | 14 | 17.5 | 36 | 27 | 30 |
| 1DB-30-12WD | M30X2 | G3/4“X14 | 20 | WD-B12 | 16 | 20.5 | 42 | 32 | 36 |
| 1DB-36-12WD | M36X2 | G3/4“X14 | 25 | WD-B12 | 16 | 23 | 47 | 38 | 46 |
| 1DB-36-16WD | M36X2 | G1"X11 | 25 | WD-B16 | 18 | 23 | 47 | 41 | 46 |
| 1DB-42-20WD | M42X2 | G1.1/4"X11 | 30 | WD-B20 | 20 | 25.5 | 52 | 50 | 50 |
| 1DB-52-24WD | M52X2 | G1.1/2"X11 | 38 | WD-B24 | 22 | 26 | 57 | 55 | 60 |
