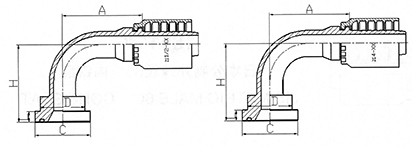

90° SAE 法兰 6000 PSI
90° SAE FLANGE 6000 PSI
代号PART NO. | 法兰型号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||||||
编织 BRAIDED | 缠绕SPIRAL | FLANGE SIZE | 公称内径DN | 标号DASH | A | C | D | H | L |
87691Y-08-08 | 87692Y-08-08 | 1/2" | 12 | 08 | 41 | 31.7 | 24 | 48 | 7.75 |
87691Y-12-10 | 87692Y-12-10 | 3/4" | 16 | 10 | 56 | 41.3 | 32 | 56.5 | 8.76 |
87691Y-12-12 | 87692Y-12-12 | 3/4" | 20 | 12 | 65.5 | 41.3 | 32 | 66 | 8.76 |
87691Y-16-12 | 87692Y-16-12 | 1" | 20 | 12 | 65.5 | 47.6 | 38 | 69 | 9.53 |
87691Y-16-16 | 87692Y-16-16 | 1" | 25 | 16 | 76.7 | 47.6 | 38 | 74.5 | 9.53 |
87691Y-16-20 | 87692Y-16-20 | 1" | 32 | 20 | 91.5/93.6 | 47.6 | 38 | 85.5 | 9.53 |
87691Y-20-16 | 87692Y-20-16 | 1.1/4" | 25 | 16 | 76.7 | 54 | 44 | 78.5 | 10.29 |
87691Y-20-20 | 87692Y-20-20 | 1.1/4" | 32 | 20 | 91.5/93.6 | 54 | 44 | 89.5 | 10.29 |
87691Y-24-20 | 87692Y-24-20 | 1.1/2" | 32 | 20 | 91.5/93.6 | 63.5 | 51 | 94.5 | 12.57 |
87691Y-24-24 | 87692Y-24-24 | 1.1/2" | 40 | 24 | 109.4/112.4 | 63.5 | 51 | 108 | 12.57 |
87691Y-32-24 | 87692Y-32-24 | 2" | 40 | 24 | 109.4/112.4 | 79.4 | 67 | 116 | 12.57 |
87691Y-32-32 | 87692Y-32-32 | 2" | 50 | 32 | 131.8/135.2 | 79.4 | 67 | 136.3 | 12.57 |
