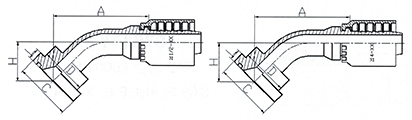

45° SAE 法兰 6000PSI
45° SAE FLANGE 6000 PSI
| 代号PART NO. | 法兰型号 FLANGE SIZE | 胶管 HOSE BORE |
|
尺寸 DIMENSIONS | ||||||
| 编织 BRAIDED | 缠绕SPIRAL | 公称内径DN | 标号DASH | A | C | D | H | L | ||
| 87641Y-08-08 | 87642Y-08-08 | 1/2" | 12 | 08 |
|
58.9 | 31.7 | 24 | 24 | 7.75 |
| 87641Y-08-12 | 87642Y-08-12 | 1/2" | 20 | 12 |
|
77 | 31.7 | 24 | 29.6 | 7.75 |
| 87641Y-12-10 | 87642Y-12-10 | 3/4” | 16 | 10 |
|
72.5 | 41.3 | 32 | 28.2 | 8.76 |
| 87641Y-12-12 | 87642Y-12- 12 | 3/4" | 20 | 12 |
|
79.2 | 41.3 | 32 | 31.8 | 8.76 |
| 87641Y-16-16 | 87642Y-16-16 | 1" | 25 | 16 |
|
88.9 | 47.6 | 38 | 34.7 | 9.53 |
| 87641Y-20-20 | 87642Y-20-20 | 1.1/4” | 32 | 20 |
|
102.3/104.4 | 54 | 44 | 41.5 | 10.29 |
| 87641Y-24-20 | 87642Y-24-20 | 1.1/2" | 32 | 20 |
|
105.8/107.9 | 63.5 | 51 | 45.1 | 12.57 |
| 87641Y-24-24 | 87642Y-24-24 | 1.1/2” | 40 | 24 |
|
119.8/122.8 | 63.5 | 51 | 49 | 12.57 |
| 87641Y-32-24 | 87642Y-32-24 | 2" | 40 | 24 |
|
125.4/128.4 | 79.4 | 67 | 54.7 | 12.57 |
| 87641Y-32-32 | 87642Y-32-32 | 2" | 50 | 32 |
|
144.8/148.2 | 79.4 | 67 | 61.9 | 12.57 |
