SAE 法兰 6000 PSI
SAE FLANGE 6000 PSI
|
代号PART NO. |
法兰型号 FLANGE SIZE |
胶管 HOSE BORE |
|

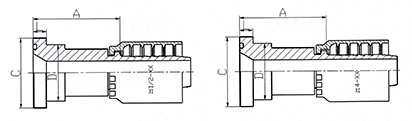

尺寸 DIMENSIONS |
|||||
|
编织 BRAIDED |
缠绕SPIRAL |
公称内径DN |
标号DASH |
A |
C |
D |
L |
||
|
87611Y-08-08 |
87612Y-08-08 |
1/2" |
12 |
08 |
|
47 |
31.7 |
24 |
7.75 |
|
87611Y-12-10 |
87612Y-12-10 |
3/4" |
16 |
10 |
|
50.5 |
41.3 |
32 |
8.76 |
|
87611Y-12-12 |
87612Y-12-12 |
3/4" |
20 |
12 |
|
51 |
41.3 |
32 |
8.76 |
|
87611Y-16-12 |
87612Y-16-12 |
1" |
20 |
12 |
|
56 |
47.6 |
38 |
9.53 |
|
87611Y-16-16 |
87612Y-16-16 |
1" |
25 |
16 |
|
57 |
47.6 |
38 |
9.53 |
|
87611Y-16-20 |
87612Y-16-20 |
1" |
32 |
20 |
|
61/63.1 |
47.6 |
38 |
9.53 |
|
87611Y-20-16 |
87612Y-20-16 |
1.1/4" |
25 |
16 |
|
65 |
54 |
44 |
10.29 |
|
87611Y-20-20 |
87612Y-20-20 |
11/4" |
32 |
20 |
|
66/68.1 |
54 |
44 |
10.29 |
|
87611Y-24-20 |
87612Y-24-20 |
1.1/2" |
32 |
20 |
|
75/77.1 |
63.5 |
51 |
12.57 |
|
87611Y-24-24 |
87612Y-24-24 |
1.1/2” |
40 |
24 |
|
75/78 |
63.5 |
51 |
12.57 |
|
87611Y-32-24 |
87612Y-32-24 |
2" |
40 |
24 |
|
85/88 |
79.4 |
67 |
12.57 |
|
87611Y-32-32 |
87612Y-32-32 |
2" |
50 |
32 |
|
85/88.4 |
79.4 |
67 |
12.57 |
