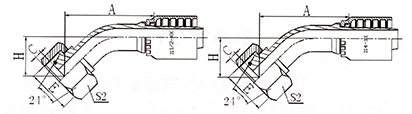

45°公制内螺纹24°锥带〇形圈重系列
45° METRIC FEMALE 24° CONE O-RING H.T.DIN3865
| 代号PART NO. | 螺纹E THREAD E | 胶管HO | SE BORE | 管子外径 TUBE O.D. | 〇形圈 ORING | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕SPIRAL | 公称内径 DN | 标号 DASH | A | C | H | S2 | |||
| 20541Y-14-04W | - | M16X1.5 | 6 | 04 | 6 | O04.5X1.5 | 38.1 | 1.1 | 16 | 17 |
| 20541Y-16-04T | - | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 38.4 | 1.5 | 16.3 | 19 |
| 20541Y-16-05W | - | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 38.4 | 1.5 | 16.3 | 19 |
| 20541Y-18-04T | - | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 39.1 | 1.5 | 17 | 22 |
| 20541Y-18-06T | 20542Y-18-06T | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 43.8 | 1.5 | 17.3 | 22 |
| 20541Y-20-06T | 20542Y-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X15 | 42.5 | 2.5 | 18.5 | 24 |
| 20541Y-20-08W | 20542Y-20-08W | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 44.8 | 2.5 | 19 | 24 |
| 20541Y-22-06T | 20542Y-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 42 | 2.5 | 18 | 27 |
| 20541Y-22-08T | 20542Y-22-08T | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 49.6 | 2.5 | 20.7 | 27 |
| 20541Y-24-08T | 20542Y-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 47.3 | 3 | 21 | 30 |
| 20541Y-24-10W | 20542Y-24-10W | M24X1.5 | 16 | 10 | 16 | O13.0X2.0 | 49.7 | 3 | 22.9 | 30 |
| 20541Y-30-10T | 20542Y-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 57.3 | 2.5 | 25 | 36 |
| 20541Y-30-12T | 20542Y-30-12T | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 65.8 | 2.5 | 26.7 | 36 |
| 20541Y-36-12T | 20542Y-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 67.1 | 3 | 30.5 | 46 |
| 20541Y-42-16T | 20542Y-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 81 | 4 | 35.5 | 50 |
| 20541Y-52-20T | 20542Y-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 94.2/96.3 | 4.5 | 39.4 | 60 |
| 20541Y-52-24T | 20542Y-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 114.1/117.1 | 4.5 | 43.4 | 60 |
