公制内螺纹24°锥带〇形圈轻系列

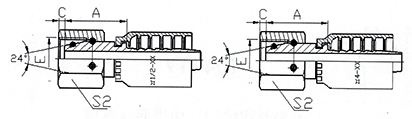

METRIC FEMALE 24° CONE O-RING L.T. ISO 12151-2—DIN3865
|
代号PART NO. |
螺纹E THREAD E |
胶管 HOSE BORE |
管子外径 TUBE O.D. |
O 形圈 O RING |
尺寸 DIMENSIONS |
||||
|
编织 BRAIDED |
缠绕SPIRAL |
公称内径DN |
标号DASH |
A |
C |
S1 |
|||
|
20411Y-12-04W |
- |
M12X1.5 |
6 |
04 |
6 |
O04.5X1.5 |
22.5 |
1.4 |
17 |
|
20411Y-14-04W |
- |
M14X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
22.5 |
1.6 |
17 |
|
20411Y-14-06W |
20412Y-14-06W |
M14X1.5 |
10 |
06 |
8 |
O06.5X1.5 |
23 |
1.6 |
17 |
|
20411Y-16-04T |
- |
M16X1.5 |
6 |
04 |
10 |
O08.0X1.5 |
23 |
2 |
19 |
|
20411Y-16-05W |
- |
M16X1.5 |
8 |
05 |
10 |
O08.0X1.5 |
23 |
2 |
19 |
|
20411Y-16-06W |
20412Y-16-06W |
M16X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
23 |
2 |
19 |
|
20411Y-18-05T |
- |
M18X1.5 |
8 |
05 |
12 |
O10.0X1.5 |
24.5 |
1.5 |
22 |
|
20411Y-18-06T |
20412Y-18-06T |
M18X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
27.5 |
1.5 |
22 |
|
20411Y-18-08W |
20412Y-18-08W |
M18X1.5 |
12 |
08 |
12 |
O10.0X1.5 |
25 |
1.5 |
22 |
|
20411Y-22-05T |
- |
M22X1.5 |
8 |
05 |
15 |
O12.0X2.0 |
26.5 |
3 |
27 |
|
20411Y-22-06T |
20412Y-22-06T |
M22X1.5 |
10 |
06 |
15 |
O12.0X2.0 |
26.5 |
3 |
27 |
|
20411Y-22-08T |
20412Y-22-08T |
M22X1.5 |
12 |
08 |
15 |
O12.0X2.0 |
29 |
3 |
27 |
|
20411Y-26-10T |
20412Y-26-10T |
M26X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
30 |
2 |
32 |
|
20411Y-26-12W |
20412Y-26-12W |
M26X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
28 |
2 |
32 |
|
20411Y-30-10T |
20412Y-30-10T |
M30X2 |
16 |
10 |
22 |
O20.0X2.0 |
31 |
4 |
36 |
|
20411Y-30-12T |
20412Y-30-12T |
M30X2 |
20 |
12 |
22 |
O20.0X2.0 |
34 |
4 |
36 |
|
20411Y-36-12T |
20412Y-36-12T |
M36X2 |
20 |
12 |
28 |
O26.0X2.0 |
33 |
4.5 |
41 |
|
20411Y-45-16T |
20412Y-45-16T |
M45X2 |
25 |
16 |
35 |
O32.0X2.5 |
37 |
4 |
50 |
|
20411Y-45-20T |
20412Y-45-20T |
M45X2 |
32 |
20 |
35 |
O32.0X2.5 |
37.5/39.6 |
4 |
50 |
|
20411Y-52-20T |
20412Y-52-20T |
M52X2 |
32 |
20 |
42 |
O38.0X2.5 |
38.5/40.6 |
4 |
60 |
|
20411Y-52-24T |
20412Y-52-24T |
M52X2 |
40 |
24 |
42 |
O38.0X2.5 |
38.5/41.5 |
4 |
60 |
