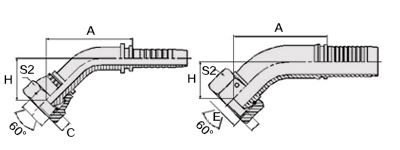

45°弯英管内螺纹60°外锥面
45°ELBOW BSP FEMALE 60° CONE
代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | H | S2 |
22641-04-04 | G1/4"X19 | 6 | 04 | 42.3 | 5.5 | 20.2 | 19 |
22641-06-06 | G3/8"X19 | 10 | 06 | 46.9 | 6.3 | 22.6 | 22 |
22641-08-08 | G1/2"X14 | 12 | 08 | 61.1 | 7.5 | 26.1 | 27 |
22641-12-10 | G3/4"X14 | 16 | 10 | 72.5 | 10.9 | 28.2 | 32 |
22641-12-12 | G3/4"X14 | 20 | 12 | 78.6 | 10.9 | 31.8 | 32 |
22641-16-16 | G1"X11 | 25 | 16 | 88.4 | 11.7 | 34.2 | 41 |
22641-20-20W | G1.1/4"X11 | 32 | 20 | 98.8 | 10.5 | 38 | 50 |
22641-24-24W | G1.1/2"X11 | 40 | 24 | 117.7 | 11 | 46.9 | 55 |
