英管内螺纹60°外锥面带O形圈

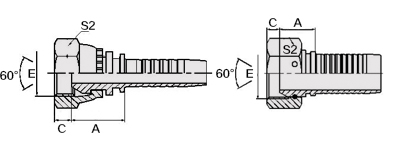

BSP FEMALE 60° O-RING CONE
代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | S2 |
22611-04-04 | G1/4"X19 | 6 | 04 | 18 | 5.5 | 19 |
22611-06-06 | G3/8"X19 | 10 | 06 | 19.5 | 6.3 | 22 |
22611-08-08 | G1/2"X14 | 12 | 08 | 21.5 | 7.5 | 27 |
22611-12-10 | G3/4"X14 | 16 | 10 | 23.5 | 10.9 | 32 |
22611-12-12 | G3/4"X14 | 20 | 12 | 24 | 10.9 | 32 |
22611-16-16 | G1"X11 | 25 | 16 | 27 | 11.7 | 41 |
22611-20-20W | G1.1/4"X11 | 32 | 20 | 29.5 | 10.5 | 50 |
22611-24-24W | G1.1/2"X11 | 40 | 24 | 35 | 11 | 55 |
