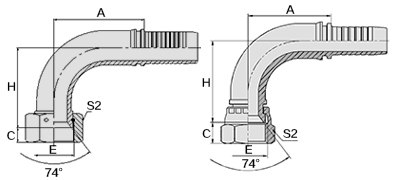

90° 美制JIC内螺纹74°内锥面
90° JIC FEMALE 74° CONE SEAT
SAE J514
| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | H | S2 |
| 26791-04-04 | 7/16”X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 26791-05-04 | 1/2“X20 | 6 | 04 | 30 | 9.5 | 34 | 17 |
| 26791-05-05 | 1/2“X20 | 8 | 05 | 33 | 9.5 | 37 | 17 |
| 26791-06-04 | 9/16”X18 | 6 | 04 | 30 | 10.5 | 34 | 19 |
| 26791-06-05 | 9/16“X18 | 8 | 05 | 33 | 10.5 | 37 | 19 |
| 26791-06-06 | 9/16”X18 | 10 | 06 | 35.3 | 10.5 | 39.3 | 19 |
| 26791-08-06 | 3/4“X16 | 10 | 06 | 35.3 | 11 | 41.3 | 24 |
| 26791-08-08 | 3/4”X16 | 12 | 08 | 41 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8“X14 | 12 | 08 | 41 | 13 | 48 | 27 |
| 26791-10-10 | 7/8”X14 | 16 | 10 | 56 | 13 | 52.5 | 27 |
| 26791-12-12 | 1.1/16"X12 | 20 | 12 | 65.5 | 14 | 63.5 | 32 |
| 26791-16-16 | 1.5/16"X12 | 25 | 16 | 76.7 | 15.5 | 70 | 41 |
| 26791-20-20W | 1.5/8"X12 | 32 | 20 | 86.5 | 13 | 85.5 | 50 |
| 26791-24-24W | 1.7/8"X12 | 40 | 24 | 109.4 | 16.5 | 101 | 55 |
