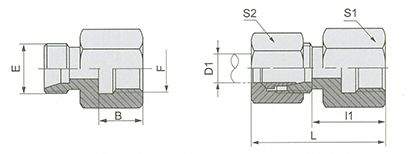

公制内螺纹/英管内螺纹
METRIC FEMALE BSP FEMALE
代号 | 螺纹 THREAD |
管子外径 TUBE O.D. |
尺寸 DIMENSIONS | |||||
PART NO. | E | F | D1 | B | l1 | L1 | S1 | S2 |
5CM-12-14 | M12X1.5 | M14X1.5 | 6 | 17 | 25 | 40 | 19 | 14 |
5CM-18-16 | M18X1.5 | M16X1.5 | 12 | 17 | 26 | 41 | 22 | 22 |
5CB-14-04 | M14X1.5 | G1/4"X19 | 8 | 17 | 24 | 39 | 19 | 17 |
5CB-18-06 | M18X1.5 | G3/8"X19 | 12 | 17 | 25 | 40 | 24 | 22 |
