焊接接头
WELD FITTINGS

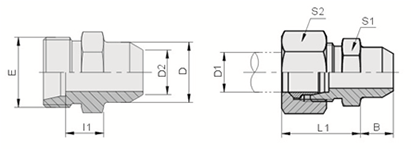

代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 尺寸 DIMENSIONS | ||||||
PART NO. | E | D1 | D2 | B | D | l1 | L1 | S1 | S2 |
1CW-12-06 | M12X1.5 | 6 | 6 | 7 | 10 | 7 | 22 | 12 | 14 |
1CW-14-08 | M14X1.5 | 8 | 8 | 7 | 12 | 8 | 23 | 14 | 17 |
1CW-16-10 | M16X1.5 | 10 | 10 | 8 | 14 | 9 | 25 | 17 | 19 |
1CW-18-12 | M18X1.5 | 12 | 12 | 8 | 16 | 10 | 25 | 19 | 22 |
1CW-22-15 | M22X1.5 | 15 | 15 | 10 | 19 | 12 | 26 | 24 | 27 |
1CW-26-18 | M26X1.5 | 18 | 18 | 10 | 22 | 11.5 | 28 | 27 | 32 |
1CW-30-22 | M30X2 | 22 | 22 | 12 | 27 | 13.5 | 30 | 32 | 36 |
1CW-36-28 | M36X2 | 28 | 28 | 12 | 32 | 14.5 | 31 | 38 | 41 |
1CW-45-35 | M45X2 | 35 | 35 | 14 | 40 | 14.5 | 36 | 46 | 50 |
1CW-52-42 | M52X2 | 42 | 42 | 16 | 46 | 16 | 39 | 55 | 60 |
1DW-14-06 | M14X1.5 | 6 | 6 | 7 | 11 | 11 | 26 | 14 | 17 |
1DW-16-08 | M16X1.5 | 8 | 8 | 8 | 13 | 13 | 28 | 17 | 19 |
1DW-18-10 | M18X1.5 | 10 | 10 | 8 | 15 | 12.5 | 29 | 19 | 22 |
1DW-20-12 | M20X1.5 | 12 | 12 | 10 | 17 | 14.5 | 31 | 22 | 24 |
1DW-22-14 | M22X1.5 | 14 | 14 | 10 | 19 | 16 | 33.5 | 24 | 27 |
1DW-24-16 | M24X1.5 | 16 | 16 | 10 | 21 | 15.5 | 34 | 27 | 30 |
1DW-30-20 | M30X2 | 20 | 20 | 12 | 26 | 17.5 | 39 | 32 | 36 |
1DW-36-25 | M36X2 | 25 | 25 | 12 | 31 | 20 | 44 | 38 | 46 |
1DW-42-30 | M42X2 | 30 | 30 | 14 | 36 | 20.5 | 47 | 46 | 50 |
1DW-52-38 | M52X2 | 38 | 38 | 16 | 44 | 23 | 54 | 55 | 60 |
