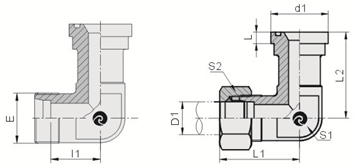

90° 弯公制螺纹卡套式法兰ISO 6162
90° ELBOW METRIC MALE BITE TYPE
FLANGE ISO 6162
| 代号 | 螺纹 THREAD | 法兰型号 | 管子外径 D1 | 尺寸 DIMENSIONS | ||||||
| PART NO. | E | FLANGE SIZE | TUBE O.D. | d1 | l | l1 | L1 | L2 | S1 | S2 |
| 1CFL9-22-08 | M22X1.5 | 1/2" | 15 | 30.2 | 6.73 | 29 | 44 | 39 | 24 | 27 |
| 1CFL9-26-12 | M26X1.5 | 3/4" | 18 | 38.1 | 6.73 | 31.5 | 48 | 45 | 30 | 32 |
| 1CFL9-36-16 | M36X2 | 1" | 28 | 44.4 | 8 | 36.5 | 53 | 45 | 36 | 41 |
| 1CFL9-45-20 | M45X2 | 1.1/4" | 35 | 50.8 | 8 | 46.5 | 68 | 50 | 41 | 50 |
| 1DFS9-30-12 | M30X2 | 3/4" | 20 | 41.3 | 8.76 | 35.5 | 57 | 48 | 32 | 36 |
| 1DFS9-36-12 | M36X2 | 3/4" | 25 | 41.3 | 8.76 | 36 | 60 | 48 | 32 | 46 |
| 1DFS9-36-16 | M36X2 | 1" | 25 | 47.6 | 9.53 | 42.5 | 66.5 | 59 | 41 | 46 |
| 1DFS9-42-16 | M42X2 | 1" | 30 | 47.6 | 9.53 | 39.5 | 66 | 60.5 | 41 | 50 |
| 1DFS9-42-20 | M42X2 | 1.1/4" | 30 | 54 | 10.29 | 44.5 | 71 | 68 | 46 | 50 |
| 1DFS9-52-20 | M52X2 | 1.1/4" | 38 | 54 | 10.29 | 45 | 76 | 68 | 46 | 60 |
