公制螺纹卡套式法兰ISO 6162
METRIC MALE BITE TYPE
FLANGE ISO 6162

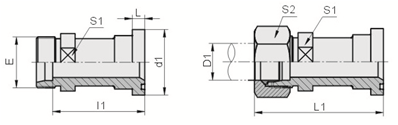

| 代号 | 螺纹 THREAD | 法兰型号 | 管子外径 D1 | 尺寸 DIMENSIONS | |||||
| PART NO. | E | FLANGE SIZE | TUBE O.D. | d1 | L | l1 | L1 | S1 | S2 |
| 1CFL-22-08 | M22X1.5 | 1/2" | 15 | 30.2 | 6.73 | 41 | 56 | 24 | 27 |
| 1CFL-26-12 | M26X1.5 | 3/4" | 18 | 38.1 | 6.73 | 45.5 | 62 | 27 | 32 |
| 1CFL-30-12 | M30X2 | 3/4" | 22 | 38.1 | 6.73 | 45.5 | 62 | 32 | 36 |
| 1CFL-36-16 | M36X2 | 1" | 28 | 44.4 | 8 | 46.5 | 63 | 38 | 41 |
| 1CFL-45-20 | M45X2 | 1.1/4" | 35 | 50.8 | 8 | 47.5 | 69 | 41 | 50 |
| 1CFL-52-24 | M52X2 | 1.1/2" | 42 | 60.3 | 8 | 53 | 76 | 46 | 60 |
| 1DFS-24-08 | M24X1.5 | 1/2" | 16 | 31.7 | 7.75 | 44.5 | 63 | 24 | 30 |
| 1DFS-24-12 | M24X1.5 | 3/4" | 16 | 41.3 | 8.76 | 49.5 | 68 | 24 | 30 |
| 1DFS-30-12 | M30X2 | 3/4" | 20 | 41.3 | 8.76 | 50.5 | 72 | 32 | 36 |
| 1DFS-36-12 | M36X2 | 3/4" | 25 | 41.3 | 8.76 | 51 | 75 | 38 | 46 |
| 1DFS-36-16 | M36X2 | 1" | 25 | 47.6 | 9.53 | 60 | 84 | 38 | 46 |
| 1DFS-42-16 | M42X2 | 1" | 30 | 47.6 | 9.53 | 60.5 | 87 | 41 | 50 |
| 1DFS-42-20 | M42X2 | 1.1/4" | 30 | 54 | 10.29 | 65.5 | 92 | 41 | 50 |
| 1DFS-52-20 | M52X2 | 1.1/4" | 38 | 54 | 10.29 | 67 | 98 | 46 | 60 |
| 1DFS-52-24 | M52X2 | 1.1/2" | 38 | 63.5 | 12.57 | 73 | 104 | 46 | 60 |
