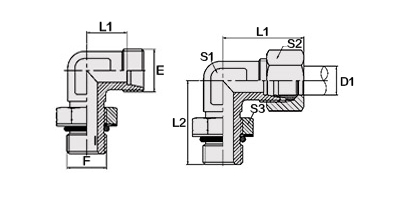

90°弯美制螺纹可调向〇形圈密封柱端
ADJUSTWBLE STUD ENDS WITH O-RING SEALING
| 代号 | 螺纹 THREAD |
管子外径 TUBE O.D. |
尺寸 DIMENSIONS | ||||||
| PART NO. | E | F | D1 | l1 | L1 | L2 | S1 | S2 | S3 |
| 1CO9-14-04OG | M14X1.5 | 7/16"X20 | 8 | 14 | 29 | 30.5 | 12 | 17 | 17 |
| 1CO9-16-06OG | M16X1.5 | 9/16"X18 | 10 | 15 | 30 | 32 | 14 | 19 | 19 |
| 1CO9-18-06OG | M18X1.5 | 9/16"X18 | 12 | 17 | 32 | 33 | 17 | 22 | 19 |
| 1CO9-18-08OG | M18X1.5 | 3/4"X16 | 12 | 21 | 36 | 41 | 19 | 22 | 24 |
| 1CO9-22-08OG | M22X1.5 | 3/4"X16 | 15 | 22 | 37 | 41 | 19 | 27 | 24 |
| 1CO9-22-10OG | M22X1.5 | 7/8"X14 | 15 | 24 | 39 | 44 | 24 | 27 | 27 |
| 1CO9-26-12OG | M26X1.5 | 1.1/16"X12 | 18 | 27.5 | 44 | 52 | 27 | 32 | 32 |
| 1CO9-30-12OG | M30X2 | 1.1/16"X12 | 22 | 27.5 | 44 | 52 | 27 | 36 | 32 |
| 1CO9-36-16OG | M36X2 | 1.5/16"X12 | 28 | 30.5 | 47 | 58 | 36 | 41 | 41 |
| 1CO9-45-20OG | M45X2 | 1.5/8"X12 | 35 | 34.5 | 56 | 61 | 41 | 50 | 50 |
| 1CO9-52-24OG | M52X2 | 1.7/8"X12 | 42 | 40 | 63 | 69 | 50 | 60 | 55 |
| 1DO9-14-04OG | M14X1.5 | 7/16"X20 | 6 | 15 | 30 | 30.5 | 12 | 17 | 17 |
| 1DO9-16-06OG | M16X1.5 | 9/16"X18 | 8 | 16 | 31 | 32 | 14 | 19 | 19 |
| 1DO9-18-06OG | M18X1.5 | 9/16"X18 | 10 | 16.5 | 33 | 33 | 17 | 22 | 19 |
| 1DO9-20-08OG | M20X1.5 | 3/4"X16 | 12 | 22.5 | 39 | 41 | 19 | 24 | 24 |
| 1DO9-22-08OG | M22X1.5 | 3/4"X16 | 14 | 23 | 40.5 | 41 | 19 | 27 | 24 |
| 1DO9-24-10OG | M24X1.5 | 7/8"X14 | 16 | 23.5 | 42 | 44 | 24 | 30 | 27 |
| 1DO9-30-12OG | M30X2 | 1.1/16"X12 | 20 | 25.5 | 47 | 52 | 27 | 36 | 32 |
| 1DO9-36-16OG | M36X2 | 1.5/16"X12 | 25 | 29 | 53 | 58 | 36 | 46 | 41 |
| 1DO9-42-20OG | M42X2 | 1.5/8"X12 | 30 | 33.5 | 60 | 61 | 41 | 50 | 50 |
| 1DO9-52-24OG | M52X2 | 1.7/8"X12 | 38 | 39 | 70 | 69 | 50 | 60 | 55 |
