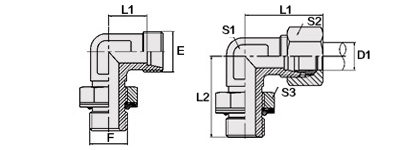

90°弯公制外螺纹可调柱端 ISO 6149
90° ELBOW MALE ADJUSTABLE STUD END ISO 6149
| 代号 | 螺纹 THREAD | 管子外径 D1 | O形圈 | 尺寸 DIMENSIONS | ||||||
| PART NO. | E | F | TUBE O.D. | O-RING | l1 | L1 | L2 | S1 | S2 | S3 |
| 1CH9-12-10OG | M12X1.5 | M10X1 | 6 | O08.1X1.6 | 11 | 26 | 25 | 10 | 14 | 14 |
| 1CH9-14-12OG | M14X1.5 | M12X1.5 | 8 | O09.3X2.4 | 14 | 29 | 31 | 12 | 17 | 17 |
| 1CH9-16-14OG | M16X1.5 | M14X1.5 | 10 | O11.3X2.4 | 15 | 30 | 32 | 14 | 19 | 19 |
| 1CH9-18-16OG | M18X1.5 | M16X1.5 | 12 | O13.3X2.4 | 17 | 32 | 35 | 17 | 22 | 22 |
| 1CH9-22-18OG | M22X1.5 | M18X1.5 | 15 | O15.3X2.4 | 22 | 37 | 38 | 19 | 27 | 24 |
| 1CH9-26-22OG | M26X1.5 | M22X1.5 | 18 | O19.3X2.4 | 23.5 | 40 | 44 | 24 | 32 | 27 |
| 1CH9-30-26OG | M30X2 | M26X1.5 | 22 | O23.5X3.0 | 27.5 | 44 | 52 | 27 | 36 | 32 |
| 1CH9-30-27OG | M30X2 | M27X2 | 22 | O23.5X3.0 | 27.5 | 44 | 52 | 27 | 36 | 32 |
| 1CH9-36-33OG | M36X2 | M33X2 | 28 | O29.5X3.0 | 30.5 | 47 | 58 | 36 | 41 | 41 |
| 1CH9-45-42OG | M45X2 | M42X2 | 35 | O38.5X3.0 | 34.5 | 56 | 61 | 41 | 50 | 50 |
| 1CH9-52-48OG | M52X2 | M48X2 | 42 | O44.5X3.0 | 40 | 63 | 69 | 50 | 60 | 55 |
| 1DH9-14-12OG | M14X1.5 | M12X1.5 | 6 | O09.3X2.4 | 15 | 30 | 31 | 12 | 17 | 17 |
| 1DH9-16-14OG | M16X1.5 | M14X1.5 | 8 | O11.3X2.4 | 16 | 31 | 32 | 14 | 19 | 19 |
| 1DH9-18-16OG | M18X1.5 | M16X1.5 | 10 | O13.3X2.4 | 16.5 | 33 | 35 | 17 | 22 | 22 |
| 1DH9-20-18OG | M20X1.5 | M18X1.5 | 12 | O15.3X2.4 | 21.5 | 38 | 38 | 19 | 24 | 24 |
| 1DH9-22-20OG | M22X1.5 | M20X1.5 | 14 | O17.3X2.4 | 23 | 40.5 | 41 | 19 | 27 | 27 |
| 1DH9-24-22OG | M24X1.5 | M22X1.5 | 16 | O19.3X2.4 | 23.5 | 42 | 44 | 24 | 30 | 27 |
| 1DH9-30-27OG | M30X2 | M27X1.5 | 20 | O23.5X3.0 | 25.5 | 47 | 52 | 27 | 36 | 32 |
| 1DH9-36-33OG | M36X2 | M33X2 | 25 | O29.5X3.0 | 29 | 53 | 58 | 36 | 46 | 41 |
| 1DH9-42OG | M42X2 | M42X2 | 30 | O38.5X3.0 | 33.5 | 60 | 61 | 41 | 50 | 50 |
| 1DH9-52-48OG | M52X2 | M48X2 | 38 | O44.5X3.0 | 39 | 70 | 69 | 50 | 60 | 55 |
