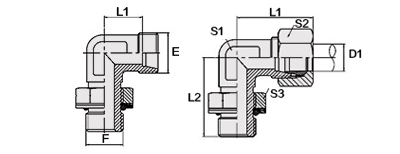

90°弯英管螺纹可调向O形圈密封柱端
90° ELBOW BSP THREAD ADJUSTWBLE STUD ENDS WITH O-RING SEALING
| 代号 | 螺纹 THREAD |
管子外径 TUBE O.D. |
尺寸 DIMENSIONS | ||||||
| PART NO. | E | F | D1 | l1 | L1 | L2 | S1 | S2 | S3 |
| 1CG9-12-02OG | M12X1.5 | G1/8"X28 | 6 | 11 | 26 | 25 | 10 | 14 | 14 |
| 1CG9-14-04OG | M14X1.5 | G1/4"X19 | 8 | 15 | 30 | 32 | 14 | 17 | 19 |
| 1CG9-16-04OG | M16X1.5 | G1/4"X19 | 10 | 15 | 30 | 32 | 14 | 19 | 19 |
| 1CG9-16-06OG | M16X1.5 | G3/8"X19 | 10 | 17 | 32 | 35 | 17 | 19 | 22 |
| 1CG9-18-06OG | M18X1.5 | G3/8"X19 | 12 | 17 | 32 | 35 | 17 | 22 | 22 |
| 1CG9-22-08OG | M22X1.5 | G1/2"X14 | 15 | 23 | 38 | 44 | 24 | 27 | 27 |
| 1CG9-26-08OG | M26X1.5 | G1/2"X14 | 18 | 23.5 | 40 | 44 | 24 | 32 | 27 |
| 1CG9-26-12OG | M26X1.5 | G3/4"X14 | 18 | 26.5 | 43 | 52 | 27 | 32 | 32 |
| 1CG9-30-12OG | M30X2 | G3/4"X14 | 22 | 27.5 | 44 | 52 | 27 | 36 | 32 |
| 1CG9-30-16OG | M30X2 | G1'X11 | 22 | 30 | 46.5 | 58 | 36 | 36 | 41 |
| 1CG9-36-16OG | M36X2 | G1"X11 | 28 | 30.5 | 47 | 58 | 36 | 41 | 41 |
| 1CG9-36-20OG | M36X2 | G1.1/4"X11 | 28 | 35.5 | 52 | 61 | 41 | 41 | 50 |
| 1CG9-45-20OG | M45X2 | G1.1/4"X11 | 35 | 34.5 | 56 | 61 | 41 | 50 | 50 |
| 1CG9-52-24OG | M52X2 | G1.1/2"X11 | 42 | 40 | 63 | 69 | 50 | 60 | 55 |
| 1DG9-14-04OG | M14X1.5 | G1/4"X19 | 6 | 16 | 31 | 32 | 14 | 17 | 19 |
| 1DG9-16-04OG | M16X1.5 | G1/4"X19 | 8 | 16 | 31 | 32 | 14 | 19 | 19 |
| 1DG9-16-06OG | M16X1.5 | G3/8"X19 | 10 | 17 | 32 | 35 | 17 | 19 | 22 |
| 1DG9-18-06OG | M18X1.5 | G3/8"X19 | 10 | 16.5 | 33 | 35 | 17 | 22 | 22 |
| 1DG9-20-06OG | M20X1.5 | G3/8"X19 | 12 | 21.5 | 38 | 36 | 19 | 24 | 22 |
| 1DG9-22-08OG | M22X1.5 | G1/2"X14 | 14 | 24 | 41.5 | 44 | 24 | 27 | 27 |
| 1DG9-24-08OG | M24X1.5 | G1/2"X14 | 16 | 23.5 | 42 | 44 | 24 | 30 | 27 |
| 1DG9-30-12OG | M30X2 | G3/4"X14 | 20 | 25.5 | 47 | 52 | 27 | 36 | 32 |
| 1DG9-36-16OG | M36X2 | G1'X11 | 25 | 29 | 53 | 58 | 36 | 46 | 41 |
| 1DG9-42-20OG | M42X2 | G1.1/4"X11 | 30 | 33.5 | 60 | 61 | 41 | 50 | 50 |
| 1DG9-52-24OG | M52X2 | G1.1/2"X11 | 38 | 39 | 70 | 69 | 50 | 60 | 55 |
