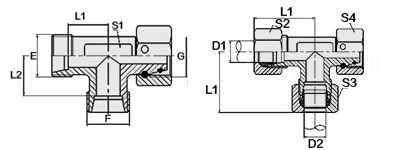

CC-W/CD-W
内螺纹主支三通接头
RUN TEE FITTINGS WITH SWIVEL NUT
|
|
|
||||||||
| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 尺寸 DIMENSIONS | ||||||
| PART NO. | E,F | G | D1 | D2 | l1,l2 | L1,L2 | S1 | S2,S3 | S4 |
| CC-12W | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 10 | 14 | 14 |
| CC-14W | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 29 | 12 | 17 | 17 |
| CC-16W | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 30 | 14 | 19 | 19 |
| CC-18W | M18X1.5 | M18X1.5 | 12 | 12 | 17 | 32 | 17 | 22 | 22 |
| CC-22W | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 36 | 19 | 27 | 27 |
| CC-26W | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 40 | 24 | 32 | 32 |
| CC-30W | M30X2 | M30X2 | 22 | 22 | 27.5 | 44 | 27 | 36 | 36 |
| CC-36W | M36X2 | M36X2 | 28 | 28 | 30.5 | 47 | 36 | 41 | 41 |
| CC-45W | M45X2 | M45X2 | 35 | 35 | 34.5 | 56 | 41 | 50 | 50 |
| CC-52W | M52X2 | M52X2 | 42 | 42 | 40 | 63 | 50 | 60 | 60 |
| DD-14W | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 12 | 17 | 17 |
| DD-16W | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 14 | 19 | 19 |
| DD-18W | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 17 | 22 | 22 |
| DD-20W | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 17 | 24 | 24 |
| DD-22W | M22X1.5 | M22X1.5 | 14 | 14 | 23 | 40.5 | 19 | 27 | 27 |
| DD-24W | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 24 | 30 | 30 |
| DD-30W | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 27 | 36 | 36 |
| DD-36W | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 36 | 46 | 46 |
| DD-42W | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 41 | 50 | 50 |
| DD-52W | M52X2 | M52X2 | 38 | 38 | 41 | 72 | 50 | 60 | 60 |
