外螺纹内螺纹转换接头

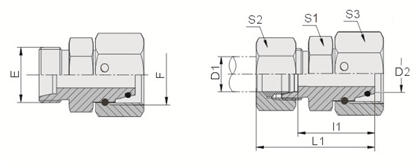

REDUCER TUBE ADAPTOR WITH SWIVEL NUT
| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 尺寸 DIMENSIONS | ||||||
| PART NO. | E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 |
| 2D-14-16W | M14X1.5 | M16X1.5 | 6 | 8 | 25 | 40 | 15 | 17 | 19 |
| 2D-14-18W | M14X1.5 | M18X1.5 | 6 | 10 | 27.5 | 42.5 | 17 | 17 | 22 |
| 2D-16-18W | M16X1.5 | M18X1.5 | 8 | 10 | 27.5 | 42.5 | 17 | 19 | 22 |
| 2D-16-20W | M16X1.5 | M20X1.5 | 8 | 12 | 29 | 44 | 17 | 19 | 24 |
| 2D-16-22W | M16X1.5 | M22X1.5 | 8 | 14 | 29.2 | 44.2 | 19 | 19 | 27 |
| 2D-16-24W | M16X1.5 | M24X1.5 | 8 | 16 | 31.2 | 46.2 | 22 | 19 | 30 |
| 2D-18-20W | M18X1.5 | M20X1.5 | 10 | 12 | 28.5 | 45 | 19 | 22 | 24 |
| 2D-18-22W | M18X1.5 | M22X1.5 | 10 | 14 | 28.7 | 45.2 | 19 | 22 | 27 |
| 2D-18-24W | M18X1.5 | M24X1.5 | 10 | 16 | 30.7 | 47.2 | 22 | 22 | 30 |
| 2D-20-22W | M20X1.5 | M22X1.5 | 12 | 14 | 30.7 | 47.2 | 22 | 24 | 27 |
| 2D-20-24W | M20X1.5 | M24X1.5 | 12 | 16 | 30.7 | 47.2 | 22 | 24 | 30 |
| 2D-22-24W | M22X1.5 | M24X1.5 | 14 | 16 | 32.2 | 49.7 | 24 | 27 | 30 |
| 2D-22-30W | M22X1.5 | M30X2 | 14 | 20 | 35.7 | 53.2 | 27 | 27 | 36 |
| 2D-24-30W | M24X1.5 | M30X2 | 16 | 20 | 35.2 | 53.7 | 27 | 30 | 36 |
| 2D-24-36W | M24X1.5 | M36X2 | 16 | 25 | 38.5 | 57 | 36 | 30 | 46 |
| 2D-30-36W | M30X2 | M36X2 | 20 | 25 | 38.5 | 60 | 36 | 36 | 46 |
| 2D-30-42W | M30X2 | M42X2 | 20 | 30 | 41 | 62.5 | 41 | 36 | 50 |
| 2D-36-42W | M36X2 | M42X2 | 25 | 30 | 41.5 | 65.5 | 41 | 46 | 50 |
| 2D-36-52W | M36X2 | M52X2 | 25 | 38 | 43.5 | 67.5 | 50 | 46 | 60 |
| 2D-42-52W | M42X2 | M52X2 | 30 | 38 | 44 | 70.5 | 50 | 50 | 60 |
