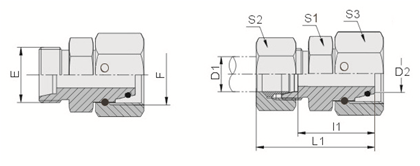

外螺纹内螺纹转换接头
REDUCER TUBE ADAPTOR WITH SWIVEL NUT
| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 尺寸 DIMENSIONS | ||||||
| PART NO. | E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 |
| 2C-12-14W | M12X1.5 | M14X1.5 | 6 | 8 | 20 | 35 | 12 | 14 | 17 |
| 2C-12-16W | M12X1.5 | M16X1.5 | 6 | 10 | 22 | 37 | 14 | 14 | 19 |
| 2C-12-18W | M12X1.5 | M18X1.5 | 6 | 12 | 22 | 37 | 17 | 14 | 22 |
| 2C-14-16W | M14X1.5 | M16X1.5 | 8 | 10 | 22 | 37 | 15 | 17 | 19 |
| 2C-14-18W | M14X1.5 | M18X1.5 | 8 | 12 | 22 | 37 | 17 | 17 | 22 |
| 2C-14-22W | M14X1.5 | M22X1.5 | 8 | 15 | 25.2 | 40.2 | 19 | 17 | 27 |
| 2C-16-18W | M16X1.5 | M18X1.5 | 10 | 12 | 23 | 38 | 17 | 19 | 22 |
| 2C-16-22W | M16X1.5 | M22X1.5 | 10 | 15 | 26.2 | 41.2 | 19 | 19 | 27 |
| 2C-18-22W | M18X1.5 | M22X1.5 | 12 | 15 | 26.2 | 41.2 | 19 | 22 | 27 |
| 2C-18-26W | M18X1.5 | M26X1.5 | 12 | 18 | 26.2 | 41.2 | 24 | 22 | 32 |
| 2C-22-26W | M22X1.5 | M26X1.5 | 15 | 18 | 28.5 | 43.5 | 24 | 27 | 32 |
| 2C-22-30W | M22X1.5 | M30X2 | 15 | 22 | 30.7 | 45.7 | 27 | 27 | 36 |
| 2C-26-30W | M26X1.5 | M30X2 | 18 | 22 | 30.2 | 46.7 | 27 | 32 | 36 |
| 2C-26-36W | M26X1.5 | M36X2 | 18 | 28 | 30.5 | 47 | 32 | 32 | 41 |
| 2C-30-36W | M30X2 | M36X2 | 22 | 28 | 32.5 | 49 | 32 | 36 | 41 |
| 2C-30-45W | M30X2 | M45X2 | 22 | 35 | 35.5 | 52 | 41 | 36 | 50 |
| 2C-36-45W | M36X2 | M45X2 | 28 | 35 | 35.5 | 52 | 41 | 41 | 50 |
| 2C-36-52W | M36X2 | M52X2 | 28 | 42 | 37.5 | 54 | 50 | 41 | 60 |
| 2C-45-52W | M45X2 | M52X2 | 35 | 42 | 36.5 | 58 | 50 | 50 | 60 |
