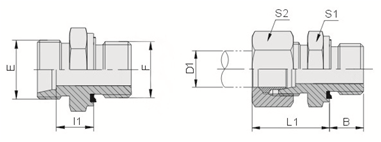

美制螺纹〇形圈密封柱端
SAE THREAD WITH O-RING SEAL
| 代号 | 螺纹 THREAD | 管子外径 D1 | O形圈 | 尺寸 DIMENSIONS | |||||
| PART NO. | E | F | TUBE O.D. | O-RING | B | l1 | L1 | S1 | S2 |
| 1CO-14-04 | M14X1.5 | 7/16"X20 | 8 | O904 | 9 | 9.5 | 24.5 | 14 | 17 |
| 1CO-16-04 | M16X1.5 | 7/16"X20 | 10 | O904 | 9 | 10.5 | 25.5 | 17 | 19 |
| 1CO-18-06 | M18X1.5 | 9/16"X18 | 12 | O906 | 10 | 12 | 27 | 19 | 22 |
| 1CO-18-08 | M18X1.5 | 3/4"X16 | 12 | O908 | 11 | 12 | 27 | 22 | 22 |
| 1CO-18-10 | M18X1.5 | 7/8"X14 | 12 | O910 | 12.5 | 14 | 29 | 27 | 22 |
| 1CO-22-08 | M22X1.5 | 3/4"X16 | 15 | O908 | 11 | 13 | 28 | 24 | 27 |
| 1CO-22-10 | M22X1.5 | 7/8"X14 | 15 | O910 | 12.5 | 15 | 30 | 27 | 27 |
| 1CO-26-08 | M26X1.5 | 3/4"X16 | 18 | O908 | 11 | 13.5 | 30 | 27 | 32 |
| 1CO-26-10 | M26X1.5 | 7/8"X14 | 18 | O910 | 12.5 | 14.5 | 31 | 27 | 32 |
| 1CO-30-10 | M30X2 | 7/8"X14 | 22 | O910 | 12.5 | 16.5 | 33 | 32 | 36 |
| 1CO-30-12 | M30X2 | 1.1/16"X12 | 22 | O912 | 15 | 16.5 | 33 | 32 | 36 |
| 1CO-30-16 | M30X2 | 1.5/16"X12 | 22 | O916 | 15 | 17.5 | 34 | 38 | 36 |
| 1CO-36-12 | M36X2 | 1.1/16"X12 | 28 | O912 | 15 | 17.5 | 34 | 38 | 41 |
| 1CO-36-16 | M36X2 | 1.5/16"X12 | 28 | O916 | 15 | 17.5 | 34 | 38 | 41 |
| 1CO-45-16 | M45X2 | 1.5/16"X12 | 35 | O916 | 15 | 17.5 | 39 | 46 | 50 |
| 1CO-45-20 | M45X2 | 1.5/8"X12 | 35 | O920 | 15 | 18.5 | 40 | 50 | 50 |
| 1CO-52-24 | M52X2 | 1.7/8"X12 | 42 | O924 | 15 | 19 | 42 | 55 | 60 |
| 1DO-16-04 | M16X1.5 | 7/16"X20 | 8 | O904 | 9 | 14.5 | 29.5 | 17 | 19 |
| 1DO-18-06 | M18X1.5 | 9/16"X18 | 10 | O906 | 10 | 14.5 | 31 | 19 | 22 |
| 1DO-20-06 | M20X1.5 | 9/16"X18 | 12 | O906 | 10 | 16.5 | 33 | 22 | 24 |
| 1DO-20-08 | M20X1.5 | 3/4"X16 | 12 | O908 | 11 | 16.5 | 33 | 22 | 24 |
| 1DO-24-08 | M24X1.5 | 3/4"X16 | 16 | O908 | 11 | 17.5 | 36 | 27 | 30 |
| 1DO-24-10 | M24X1.5 | 7/8"X14 | 16 | O910 | 12.5 | 18.5 | 38 | 27 | 30 |
| 1DO-30-08 | M30X2 | 3/4"X16 | 20 | O908 | 11 | 19.5 | 41 | 32 | 36 |
| 1DO-30-10 | M30X2 | 7/8"X14 | 20 | O910 | 12.5 | 20.5 | 42 | 32 | 36 |
| 1DO-30-12 | M30X2 | 1.1/16"X12 | 20 | O912 | 15 | 20.5 | 42 | 32 | 36 |
| 1DO-36-12 | M36X2 | 1.1/16"X12 | 25 | O912 | 15 | 23 | 47 | 38 | 46 |
| 1DO-36-16 | M36X2 | 1.5/16"X12 | 25 | O916 | 15 | 23 | 47 | 38 | 46 |
| 1DO-42-16 | M42X2 | 1.5/16"X12 | 30 | O916 | 15 | 23.5 | 50 | 46 | 50 |
| 1DO-42-20 | M42X2 | 1.5/8"X12 | 30 | O920 | 15 | 25.5 | 52 | 50 | 50 |
| 1DO-52-20 | M52X2 | 1.5/8"X12 | 38 | O920 | 15 | 26 | 57 | 55 | 60 |
