1CH/ 1DH

公制螺纹O形圈密封柱端

METRIC THREAD WITH O-RING

产品详情

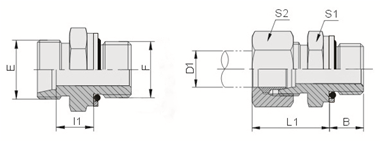

代号	螺纹 THREAD		管子外径 D1	O形圈	尺寸 DIMENSIONS
PART NO.	E	F	TUBE O.D.	O-RING	B	l1	L1	S1	S2
1CH-12-10	M12X1.5	M10X1	6	O08.1X1.6	8	9.5	24.5	14	14
1CH-14	M14X1.5	M14X1.5	8	O11.3X2.4	12	11	26	19	17
1CH-14-10	M14X1.5	M10X1	8	O08.1X1.6	8	9.5	24.5	14	17
1CH-14-12	M14X1.5	M12X1.5	8	O09.3X2.4	12	10	25	17	17
1CH-14-18	M14X1.5	M18X1.5	8	O15.3X2.4	12	11.5	26.5	24	17
1CH-16	M16X1.5	M16X1.5	10	O13.3X2.4	12	12	27	22	19
1CH-16-10	M16X1.5	M10X1	10	O08.1X1.6	8	10.5	25.5	17	19
1CH-16-12	M16X1.5	M12X1.5	10	O09.3X2.4	12	11	26	17	19
1CH-16-14	M16X1.5	M14X1.5	10	O11.3X2.4	12	12	27	19	19
1CH-16-18	M16X1.5	M18X1.5	10	O15.3X2.4	12	12.5	27.5	24	19
1CH-16-20	M16X1.5	M20X1.5	10	O17.3X2.4	14	13.5	28.5	27	19
1CH-16-22	M16X1.5	M22X1.5	10	O19.3X2.4	14	14	29	27	19
1CH-18	M18X1.5	M18X1.5	12	O15.3X2.4	12	12.5	27.5	24	22
1CH-18-14	M18X1.5	M14X1.5	12	O11.3X2.4	12	12	27	19	22
1CH-18-16	M18X1.5	M16X1.5	12	O13.3X2.4	12	12	27	22	22
1CH-18-20	M18X1.5	M20X1.5	12	O17.3X2.4	14	13.5	28.5	27	22
1CH-18-22	M18X1.5	M22X1.5	12	O19.3X2.4	14	14	29	27	22
1CH-22	M22X1.5	M22X1.5	15	O19.3X2.4	14	15	30	27	27
1CH-22-16	M22X1.5	M16X1.5	15	O13.3X2.4	12	13	28	24	27
1CH-22-18	M22X1.5	M18X1.5	15	O15.3X2.4	12	13.5	28.5	24	27
1CH-22-20	M22X1.5	M20X1.5	15	O17.3X2.4	14	14.5	29.5	27	27
1CH-22-33	M22X1.5	M33X2	15	O29.5X3.0	18	16	31	41	27
1CH-26-18	M26X1.5	M18X1.5	18	O15.3X2.4	12	14	30.5	27	32
1CH-26	M26X1.5	M26X1.5	18	O23.5X3.0	16	14.5	31	32	32
1CH-26-20	M26X1.5	M20X1.5	18	O17.3X2.4	14	14	30.5	27	32
1CH-26-22	M26X1.5	M22X1.5	18	O19.3X2.4	14	14.5	31	27	32
1CH-26-27	M26X1.5	M27X2	18	O23.5X3.0	16	14.5	31	32	32
1CH-26-33	M26X1.5	M33X2	18	O29.5X3.0	18	15.5	32	41	32
1CH-30	M30X2	M30X2	22	O26.5X3.0	16	16.5	33	36	36
1CH-30-26	M30X2	M26X1.5	22	O23.5X3.0	16	16.5	33	32	36
1CH-30-27	M30X2	M27X2	22	O23.5X3.0	16	16.5	33	32	36
1CH-30-33	M30X2	M33X2	22	O29.5X3.0	18	17.5	34	41	36
1CH-36-27	M36X2	M27X2	28	O23.5X3.0	17	18	34	38	41
1CH-36-33	M36X2	M33X2	28	O29.5X3.0	18	17.5	34	41	41
1CH-36-42	M36X2	M42X2	28	O38.5X3.0	20	19.5	36	50	41
1CH-45-33	M45X2	M33X2	35	O29.5X3.0	18	17.5	39	46	50
1CH-45-42	M45X2	M42X2	35	O38.5X3.0	20	18.5	40	50	50
1CH-52-42	M52X2	M42X2	42	O38.5X3.0	20	19	42	55	60
1CH-52-48	M52X2	M48X2	42	O44.5X3.0	22	19	42	55	60
1DH-14-12	M14X1.5	M12X1.5	6	O09.3X2.4	12	15	30	17	17
1DH-16-14	M16X1.5	M14X1.5	8	O11.3X2.4	12	15	30	19	19
1DH-18-20	M18X1.5	M20X1.5	10	O17.3X2.4	14	17	33.5	27	22
1DH-20-18	M20X1.5	M18X1.5	12	O15.3X2.4	12	17	33.5	24	24
1DH-22	M22X1.5	M22X1.5	14	O19.3X2.4	14	19	36.5	27	27
1DH-22-16	M22X1.5	M16X1.5	14	O13.3X2.4	12	18	35.5	24	27
1DH-22-18	M22X1.5	M18X1.5	14	O15.3X2.4	12	18.5	36	24	27
1DH-24-22	M24X1.5	M22X1.5	16	O19.3X2.4	14	18.5	37	27	30
1DH-24-27	M24X1.5	M27X2	16	O23.5X3.0	16	20.5	39	32	30
1DH-30-27	M30X2	M27X2	20	O23.5X3.0	16	20.5	42	32	36
1DH-30	M30X2	M30X2	20	O26.5X3.0	16	22.5	44	41	36
1DH-36-27	M36X2	M27X2	25	O23.5X3.0	16	23	47	38	46
1DH-36-33	M36X2	M33X2	25	O29.5X3.0	18	23	47	41	46
1DH-42	M42X2	M42X2	30	O38.5X3.0	20	25.5	52	50	50
1DH-42-48	M42X2	M48X2	30	O44.5X3.0	22	26.5	53	55	50
1DH-52-48	M52X2	M48X2	38	O44.5X3.0	22	26	57	55	60
