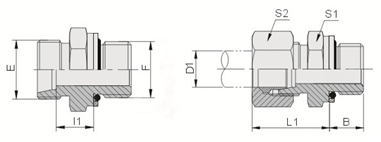

英管螺纹O形圈密封柱端
BSP THREAD WITH O-RING SEAL
| 代号 | 螺纹 THREAD | 管子外径 D1 | O形圈 | 尺寸 DIMENSIONS | |||||
| PART NO. | E | F | TUBE O.D. | O-RING | B | l1 | L1 | S1 | S2 |
| 1CG-12-04 | M12X1.5 | G1/4”X19 | 6 | O111 | 12 | 11 | 26 | 19 | 14 |
| 1CG-14-04 | M14X1.5 | G1/4“X19 | 8 | O111 | 12 | 11 | 26 | 19 | 17 |
| 1CG-14-06 | M14X1.5 | G3/8”X19 | 8 | O113 | 12 | 11.5 | 26.5 | 22 | 17 |
| 1CG-16-04 | M16X1.5 | G1/4“X19 | 10 | O111 | 12 | 12 | 27 | 19 | 19 |
| 1CG-16-06 | M16X1.5 | G3/8”X19 | 10 | O113 | 12 | 12.5 | 27.5 | 22 | 19 |
| 1CG-16-08 | M16X1.5 | G1/2“X14 | 10 | O115 | 14 | 14 | 29 | 27 | 19 |
| 1CG-18-04 | M18X1.5 | G1/4”X19 | 12 | O111 | 12 | 12 | 27 | 19 | 22 |
| 1CG-18-06 | M18X1.5 | G3/8“X19 | 12 | O113 | 12 | 12.5 | 27.5 | 22 | 22 |
| 1CG-18-08 | M18X1.5 | G1/2“X14 | 12 | O115 | 14 | 14 | 29 | 27 | 22 |
| 1CG-22-06 | M22X1.5 | G3/8”X19 | 15 | O113 | 12 | 13.5 | 28.5 | 24 | 27 |
| 1CG-22-08 | M22X1.5 | G1/2“X14 | 15 | O115 | 14 | 15 | 30 | 27 | 27 |
| 1CG-26-08 | M26X1.5 | G1/2“X14 | 18 | O115 | 14 | 14.5 | 32 | 27 | 32 |
| 1CG-26-12 | M26X1.5 | G3/4“X14 | 18 | O119 | 16 | 14.5 | 31 | 32 | 32 |
| 1CG-30-12 | M30X2 | G3/4“X14 | 22 | O119 | 16 | 16.5 | 33 | 32 | 36 |
| 1CG-36-16 | M36X2 | G1”X11 | 28 | O217 | 18 | 17.5 | 34 | 41 | 41 |
| 1CG-45-20 | M45X2 | G1.1/4"X11 | 35 | O222 | 20 | 18.5 | 40 | 50 | 50 |
| 1CG-52-24 | M52X2 | G1.1/2"X11 | 42 | O224 | 22 | 19 | 42 | 55 | 60 |
| 1DG-14-04 | M14X1.5 | G1/4"X19 | 6 | O111 | 12 | 15 | 30 | 19 | 17 |
| 1DG-16-04 | M16X1.5 | G1/4"X19 | 8 | O111 | 12 | 15 | 30 | 19 | 19 |
| 1DG-16-06 | M16X1.5 | G3/8"X19 | 8 | O113 | 12 | 17.5 | 32.5 | 22 | 19 |
| 1DG-18-04 | M18X1.5 | G1/4"X19 | 10 | O111 | 12 | 14.5 | 31 | 19 | 22 |
| 1DG-18-06 | M18X1.5 | G3/8"X19 | 10 | O113 | 12 | 17 | 33.5 | 22 | 22 |
| 1DG-20-06 | M20X1.5 | G3/8"X19 | 12 | O113 | 12 | 17 | 33.5 | 22 | 24 |
| 1DG-20-08 | M20X1.5 | G1/2"X14 | 12 | O115 | 14 | 17.5 | 34 | 27 | 24 |
| 1DG-22-08 | M22X1.5 | G1/2"X14 | 14 | O115 | 14 | 19 | 36.5 | 27 | 27 |
| 1DG-24-06 | M24X1.5 | G3/8"X19 | 16 | O113 | 12 | 16 | 34.5 | 27 | 30 |
| 1DG-24-08 | M24X1.5 | G1/2"X14 | 16 | O115 | 14 | 18.5 | 37 | 27 | 30 |
| 1DG-30-12 | M30X2 | G3/4“X14 | 20 | O119 | 16 | 20.5 | 42 | 32 | 36 |
| 1DG-36-12 | M36X2 | G3/4“X14 | 25 | O119 | 16 | 23 | 47 | 38 | 46 |
| 1DG-36-16 | M36X2 | G1"X11 | 25 | O217 | 18 | 23 | 47 | 41 | 46 |
| 1DG-42-20 | M42X2 | G1.1/4"X11 | 30 | O222 | 20 | 25.5 | 52 | 50 | 50 |
| 1DG-52-24 | M52X2 | G1.1/2"X11 | 38 | O224 | 22 | 26 | 57 | 55 | 60 |
