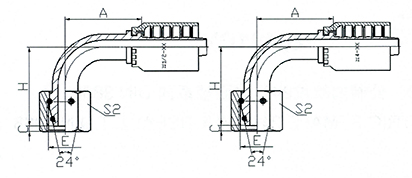

90°公制内螺纹24°锥带〇形圈轻系列
90° METRIC FEMALE 24° CONE O-RING L.T. ISO 12151-2—DIN3865
| 代号PART NO. | 螺纹E THREAD E | 胶管 HOSE BORE | 管子外径 TUBEO.D. | 〇形圈 ORING | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕SPIRAL | 公称内径 DN | 标号 DASH | A | C | H | S2 | |||
| 20491Y-12-04W | - | M12X1.5 | 6 | 04 | 6 | O04.5X1.5 | 27 | 1.4 | 30 | 17 |
| 20491Y-14-04W | - | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 30 | 1.6 | 30.5 | 17 |
| 20491Y-16-04T | - | M16X1.5 | 6 | 04 | 10 | O08.0X1.5 | 30 | 2 | 30.5 | 19 |
| 20491Y-16-05W | - | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 33 | 2 | 33 | 19 |
| 20491Y-16-06W | 20492Y-16-06W | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 35 | 2 | 33 | 19 |
| 20491Y-18-05T | - | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 33 | 1.5 | 33.5 | 22 |
| 20491Y-18-06T | 20492Y-18-06T | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 37 | 1.5 | 36 | 22 |
| 20491Y-22-06T | 20492Y-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 34.5 | 3 | 36 | 27 |
| 20491Y-22-08T | 20492Y-22-08T | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 42 | 3 | 41.5 | 27 |
| 20491Y-26-08T | 20492Y-26-08T | M26X1.5 | 12 | 08 | 18 | O15.0X2.0 | 39.5 | 2 | 42.9 | 32 |
| 20491Y-26-10T | 20492Y-26-10T | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 51.2 | 2 | 51.5 | 32 |
| 20491Y-26-12W | 20492Y-26-12W | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 55.5 | 2 | 51.5 | 32 |
| 20491Y- 30-10T | 20492Y-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 49 | 4 | 51.5 | 36 |
| 20491Y-30-12T | 20492Y-30-12T | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 57 | 4 | 56 | 36 |
| 20491Y-36-12T | 20492Y-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 55.3 | 4.5 | 56 | 41 |
| 20491Y-45-16T | 20492Y-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.5 | 71 | 4 | 69.5 | 50 |
| 20491Y-45-20T | 20492Y-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.5 | 81.5/83.6 | 4 | 86 | 50 |
| 20491Y-52-20T | 20492Y-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.5 | 83/85.1 | 4 | 87 | 60 |
| 20491Y-52-24T | 20492Y-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.5 | 109.4/112.4 | 4 | 100.5 | 60 |
